Forklift 42ft. 6000# Cat 642C

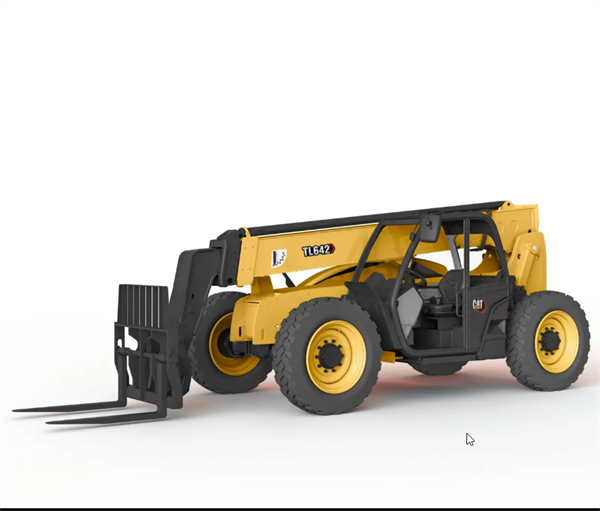

The Cat TL642C is a rugged 4-wheel-drive telehandler designed for heavy-duty lifting and material handling. It offers a rated load capacity of 6,500 lbs and a maximum lift height of 42 feet.

Key performance and dimension specifications include:

Performance

• Rated Load Capacity: 6,500 lbs
• Max Lift Height: 42 ft
• Max Forward Reach: 30 ft
• Top Travel Speed: 20.4 mph

Engine & Hydraulics

• Engine Model: Cat C3.4B (Tier 4 Interim) or Cat C4.4 ACERT (Tier 3) depending on the specific region and year
• Gross Power: 100.6 hp
• Maximum Torque: 302.4 lb-ft
• Hydraulic System Flow/Pressure: 4,000 psi system pressure with a single-section gear pump

Dimensions & Weight

• Operating Weight: ~21,445 to 22,045 lbs
• Overall Height: 7.8 ft
• Overall Width: 7.91 ft
• Turning Radius: 12 ft (over tires)
• Ground Clearance: 1.37 f
