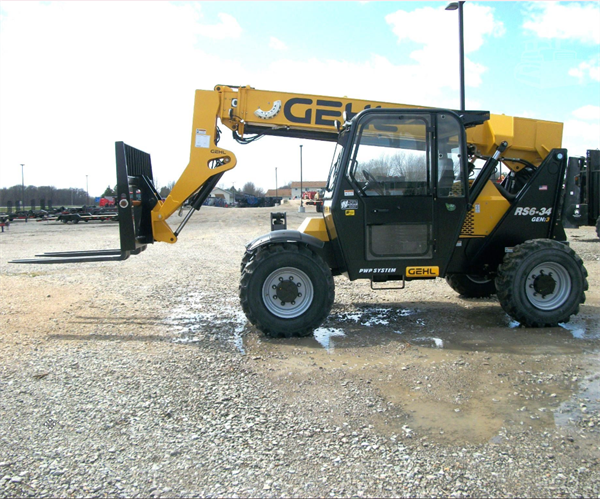

Forklift 34ft. 6000# Gehl RS6-34

The Gehl RS6-34 is a compact 6,000 lb capacity telehandler frequently used on construction and agricultural job sites. It features a maximum lifting height of 34 ft 3 in and a forward reach of 23 ft 3 in, all powered by a Tier 4 Final 74 hp diesel engine.

Core specifications for the Gehl RS6-34 include:

Performance Capacities

• Maximum Lift Capacity: 6,000 lbs
• Maximum Lift Height: 34 ft 3 in
• Capacity at Max Lift Height: 4,000 lbs
• Maximum Forward Reach: 23 ft 3 in
• Capacity at Max Reach: 900 lbs
• Frame Leveling: Longitudinal 10 degrees

Engine & Drivetrain

• Engine Brand: Deutz
• Horsepower: 74 hp
• Transmission: Dana 3-speed powershift
• Max Travel Speed: 18 mph
• Steering Modes: 4-wheel, 2-wheel, and crab

Dimensions & Weight

• Overall Length to Fork Face: 16 ft 0 in
• Overall Width: 7 ft 10 in
• Overall Height: 7 ft 10 in
• Wheelbase: 9 ft 2 in
• Ground Clearance: 14 in
• Turning Radius: 12 ft 6 in
• Operating Weight: ~15,100 lbs

Hydraulics & Capacities

• System Flow: 29 gpm
• System Pressure: 3,000 psi
• Fuel Tank: 29 US gal
