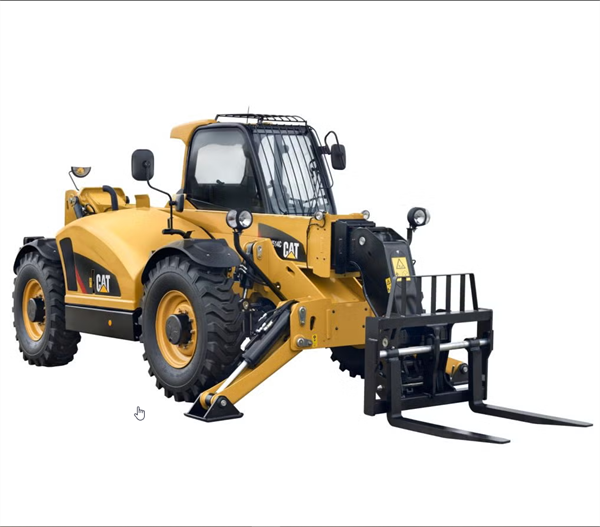

Cat TH514

The Cat TH514 is a robust, three-section telehandler designed for high-reach material handling. It features a maximum lift capacity of 11,000 lbs and a maximum lift height of 45 feet, making it an ideal workhorse for demanding job sites.

A breakdown of key specifications and performance metrics across its production models:

Key Dimensions

• Operating Weight: 23,772 lbs
• Overall Length: 21.39 ft
• Overall Width: 8 ft
• Ground Clearance: 1.5 ft

Performance Capabilities

• Maximum Lift Height: 45 ft with stabilizers
• Max Forward Reach: 30 ft
• Capacity at Max Height: 4,000 lbs stabilizers up; up to 7,000 lbs stabilizers down
• Capacity at Max Reach: 1,000 lbs stabilizers up; 3,000 lbs stabilizers down
• Top Travel Speed: 21 mph

Powertrain

• Engine: Typically equipped with a Cat C4.4 or Cat C3.4B (later C and D series models)
• Gross Power: 101 hp
• Transmission: 4-speed Powersynch
